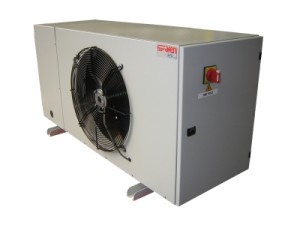

The Eco-Inverter comes on the basis of the low nois condensing units for commercial refrigeration. Maintain the same benefits, such as the possibility of outdoor installation, on the wall, on the floor. The application of a
variable speed drive (inverter) allows to optimize the speed of the compressor on the basis of actual need reducing energy consumption. The addition of a variable speed control on the condenser-fan, further reduce the noise level.
Standard Equipment :
- Liquid receiver
- Dry filter filter dryier
- Liquid and humidity indicator sight glass
- Oil separator
- Double automatic pressure switch HP/LP
- HP pressostat
- Rotalock valves on the compressor (excluded models with power below 1,8 HP)
- Electrical connection IP55 box
- Variable speed drive (Inverter)
- Automatic speed fan control
[/vc_column_text][/vc_column][vc_column width= »1/3″ animation= » »][vc_single_image border_color= »grey » img_link_large= » » img_link_target= »_self » image_hovers= »true » css= ».vc_custom_1434564139190{padding-top: 20px !important;padding-right: 20px !important;padding-bottom: 20px !important;padding-left: 20px !important;} » image= »35902″ img_size= »medium »][/vc_column][/vc_row][vc_row margin_top= »0″ margin_bottom= »0″ full_width= » » padding_left= »0″ padding_right= »0″ animation= » » type= » » bg_color= » » bg_position= »top » bg_repeat= »no-repeat » bg_cover= »false » bg_attachment= »false » padding_top= »0″ padding_bottom= »0″ enable_parallax= » » parallax_speed= »0.1″ bg_video_src_mp4= » » bg_video_src_ogv= » » bg_video_src_webm= » » bg_type= » » parallax_style= » » bg_image_new= » » layer_image= » » bg_image_repeat= » » bg_image_size= » » bg_cstm_size= » » bg_img_attach= » » parallax_sense= » » bg_image_posiiton= » » animation_direction= » » animation_repeat= » » video_url= » » video_url_2= » » u_video_url= » » video_opts= » » video_poster= » » u_start_time= » » u_stop_time= » » viewport_vdo= » » enable_controls= » » bg_override= » » disable_on_mobile_img_parallax= » » parallax_content= » » parallax_content_sense= » » fadeout_row= » » fadeout_start_effect= » » enable_overlay= » » overlay_color= » » overlay_pattern= » » overlay_pattern_opacity= » » overlay_pattern_size= » » overlay_pattern_attachment= » » multi_color_overlay= » » multi_color_overlay_opacity= » » seperator_enable= » » seperator_type= » » seperator_position= » » seperator_shape_size= » » seperator_svg_height= » » seperator_shape_background= » » seperator_shape_border= » » seperator_shape_border_color= » » seperator_shape_border_width= » » icon_type= » » icon= » » icon_size= » » icon_color= » » icon_style= » » icon_color_bg= » » icon_border_style= » » icon_color_border= » » icon_border_size= » » icon_border_radius= » » icon_border_spacing= » » icon_img= » » img_width= » » ult_hide_row= » » ult_hide_row_large_screen= » » ult_hide_row_desktop= » » ult_hide_row_tablet= » » ult_hide_row_tablet_small= » » ult_hide_row_mobile= » » ult_hide_row_mobile_large= » »][vc_column width= »1/1″ animation= » »][vc_column_text css_animation= »fadeInLeft » css= ».vc_custom_1438109439664{padding-top: 20px !important;padding-right: 20px !important;padding-bottom: 20px !important;padding-left: 20px !important;} »]
Technical specifications :
- Carrying modular structure in cataphoresis polyester paint RAL7035
- Hermetic alternative compressor
- Condenser in copper pipe and aluminium fins
- Fan motors with external rotor
Advantages :
- Reduced Installation time; the units are equipped with all the necessary accessories.
- Easyness of maintenance; the single cover is realized for allowing the inspection with easy and fast accessibility
- Silent operation; thanks to the application of acoustic panels and fan speed control.
- Energy saving; the units are optimized to obtain the best possible output/energy consumption ratio. Energy saving up to 25%
Optional :
- Keypad control Inverter with extension.
[/vc_column_text][vc_empty_space height= »32px »][vc_column_text]
Refrigeration medium-high température :
[/vc_column_text][vc_empty_space height= »32px »][vc_tabs interval= »0″ style= »tab-style-one »][vc_tab title= »R404A » tab_id= »9c4f7279-0609-9″][vc_column_text]
| Code | Model | Freq | W -15 | W -10 | W -5 | W 0 | W +7,2 | IN | OUT | W | D | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12221200 | TSPHG 85 U FUD | 30 Hz | 582 | 751 | 950 | 1183 | 1590 | 1/2”-12 | 3/8”-10 | 1080 | 530 | 400 |
| 50 Hz | 970 | 1252 | 1583 | 1972 | 2650 | |||||||
| 70 Hz | 1358 | 1753 | 2216 | 2761 | 3710 | |||||||
| 12221230 | TSPHG 150 U FUD | 30 Hz | 1061 | 1412 | 1805 | 2254 | 3018 | 1/2”-12 | 3/8”-10 | 1300 | 650 | 450 |
| 50 Hz | 1769 | 2353 | 3009 | 3756 | 5030 | |||||||
| 70 Hz | 2477 | 3294 | 4213 | 5258 | 7042 | |||||||
| 12221240 | TSPHG 180 U FUD | 30 Hz | 1031 | 1382 | 1782 | 2240 | 3022 | 5/8”-16 | 3/8”-10 | 1300 | 650 | 450 |
| 50 Hz | 1718 | 2303 | 2970 | 3734 | 5036 | |||||||
| 70 Hz | 2405 | 3224 | 4158 | 5228 | 7050 | |||||||
| 12221260 | TSPHG 260 U FUD | 30 Hz | 1469 | 2086 | 2703 | 3344 | 4360 | 22 ODS | 12 ODS | 1300 | 650 | 450 |
| 50 Hz | 2449 | 3477 | 4505 | 5573 | 7266 | |||||||
| 70 Hz | 3429 | 4868 | 6307 | 7802 | 10172 | |||||||
| 12221280 | TSPHG 380 U2 FUD | 30 Hz | 2022 | 2788 | 3680 | 4720 | 6515 | 22 ODS | 16 ODS | 1050 | 1250 | 450 |
| 50 Hz | 3370 | 4646 | 6134 | 7867 | 10859 | |||||||
| 70 Hz | 4718 | 6504 | 8588 | 11014 | 15203 |
| Code | Model | Freq | W -15 | W -10 | W -5 | W 0 | W +7,2 | IN | OUT | W | D | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12221205 | TSPHZ 85 U FUD | 30 Hz | 350 | 523 | 729 | 970 | 1377 | 1/2”-12 | 3/8”-10 | 1080 | 530 | 400 |
| 50 Hz | 584 | 871 | 1215 | 1617 | 2295 | |||||||
| 70 Hz | 818 | 1219 | 1701 | 2264 | 3213 | |||||||
| 12221215 | TSPHZ 100 U FUD | 30 Hz | 527 | 736 | 992 | 1296 | 1816 | 1/2”-12 | 3/8”-10 | 1080 | 530 | 400 |
| 50 Hz | 878 | 1227 | 1654 | 2160 | 3026 | |||||||
| 70 Hz | 1229 | 1718 | 2316 | 3024 | 4236 | |||||||
| 12221235 | TSPHZ 150 U FUD | 30 Hz | 622 | 990 | 1423 | 1920 | 2750 | 5/8”-16 | 3/8”-10 | 1300 | 650 | 450 |
| 50 Hz | 1036 | 1650 | 2371 | 3200 | 4583 | |||||||
| 70 Hz | 1450 | 2310 | 3319 | 4480 | 6416 | |||||||
| 12221255 | TSPHZ 220 U FUD | 30 Hz | 821 | 1300 | 1925 | 2695 | 4060 | 22 ODS | 12 ODS | 1300 | 650 | 450 |
| 50 Hz | 1368 | 2166 | 3208 | 4492 | 6766 | |||||||
| 70 Hz | 1915 | 3032 | 4491 | 6289 | 9472 | |||||||
| 12221265 | TSPHZ 260 U2 FUD | 30 Hz | 1168 | 1723 | 2437 | 3308 | 4843 | 22 ODS | 16 ODS | 1050 | 1250 | 450 |
| 50 Hz | 1946 | 2871 | 4061 | 5514 | 8071 | |||||||
| 70 Hz | 2724 | 4019 | 5685 | 7720 | 11299 | |||||||
| 12221275 | TSPHZ 300 U2 FUD | 30 Hz | 1369 | 1985 | 2780 | 3755 | 5474 | 22 ODS | 16 ODS | 1050 | 1250 | 450 |
| 50 Hz | 2281 | 3308 | 4634 | 6258 | 9123 | |||||||
| 70 Hz | 3193 | 4631 | 6488 | 8761 | 12772 | |||||||
| 12221285 | TSPHZ 350 U2 FUD | 30 Hz | 1440 | 2065 | 2909 | 3972 | 5887 | 22 ODS | 16 ODS | 1050 | 1250 | 450 |
| 50 Hz | 2400 | 3442 | 4848 | 6620 | 9812 | |||||||
| 70 Hz | 3360 | 4819 | 6787 | 9268 | 13737 |
